Build your Strata order code.

Pick a model, then set the light. Only the options that model is made with are shown, so every code you build is a real one.

1 · Model 6 models · 1 type

2 · Light

Colour

Beam

Dimming

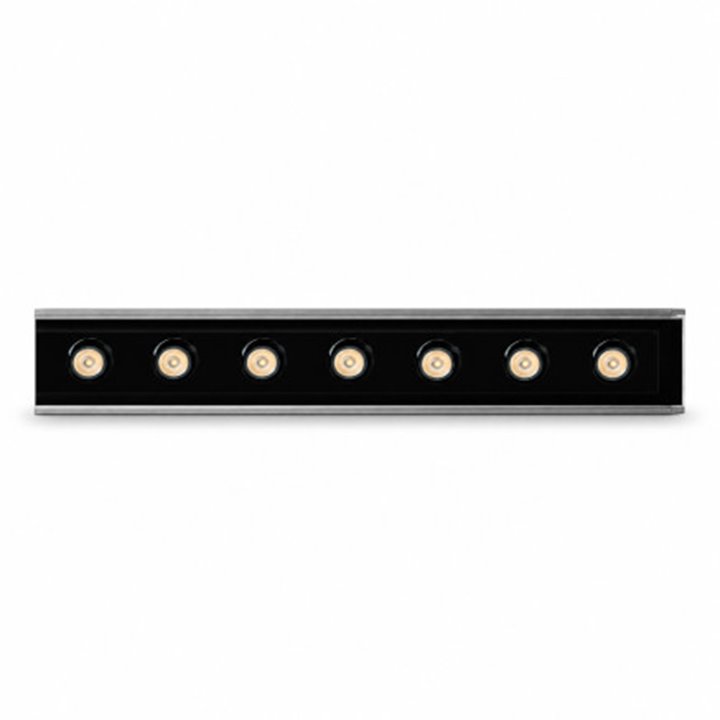

Strata 5046W

Order code Linear inground light

SR5046W-3025-ND

Finish and material are as listed on the model page; no finish code is added. Dimming availability varies by model. Confirm the input voltage and power-supply arrangement shown for the selected model. Select the required linear length or mounting configuration where applicable.

Colour temperature3000K

Beam angle25°

DimmingNon-dimmable

Wattage36 W

Lumen output3240 lm

CRI80

Ingress protectionIP67

DimensionsL1000 (500 / 300) x W46 x H54 mm

Installation openingEmbedded box (included)

Finish / materialAluminium / Tempered Glass / Aluminium Body

InstallationGround Recessed

Input voltage220-240V AC / 24V DC
