Build your Aqua order code.

Pick a model, then set the light. Only the options that model is made with are shown, so every code you build is a real one.

1 · Model 23 models · 8 types

2 · Light

Colour

Beam

Dimming

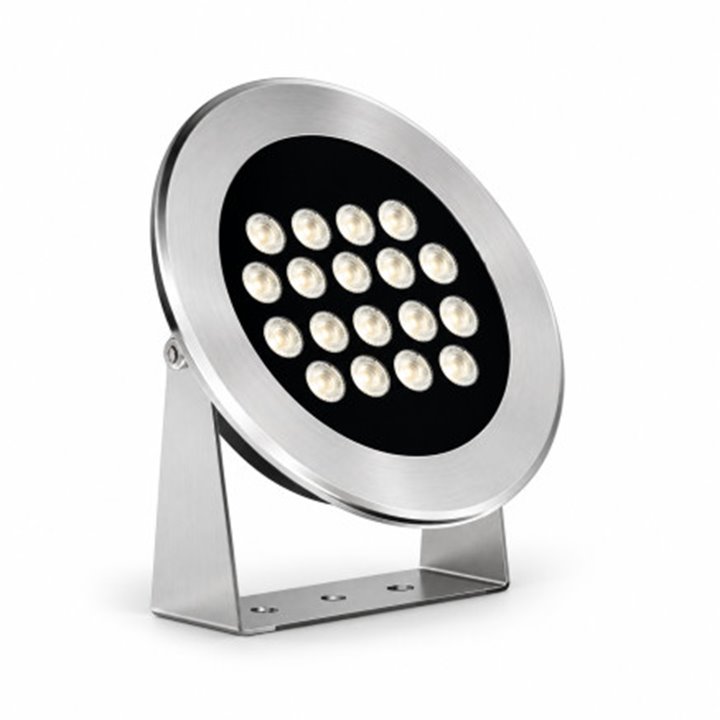

Aqua 4103F

Order code Underwater flood light

AQ4103F-3025-ND

Finish and material are as listed on the model page; no finish code is added. Dimming availability varies by model. Confirm the input voltage and power-supply arrangement shown for the selected model. Select the required linear length or mounting configuration where applicable.

Colour temperature3000K

Beam angle25°

DimmingNon-dimmable

Wattage12 W

Lumen output1080 lm

CRI80

Ingress protectionIP68

DimensionsØ103 x L55 x H70 mm

Finish / materialStainless Steel / SS316 Body

InstallationUnderwater Surface (bracket)

Input voltage24V DC / 12V DC

Power supplyRemote
