SL-08 — Strip Lights

Vexar

Continuous light. Flexible possibilities.

Continuous COB emission for clean lines of light.

5–23 W/mCRI 90White, tunable or RGB
Configure ↓ 15 models · 21 wattage variants
Vexar series
Configure

Build your Vexar order code.

Pick a model, then set the light. Only the options that model is made with are shown, so every code you build is a real one.

1 · Model 15 models · 21 wattage variants
2 · Light
Colour
Protection

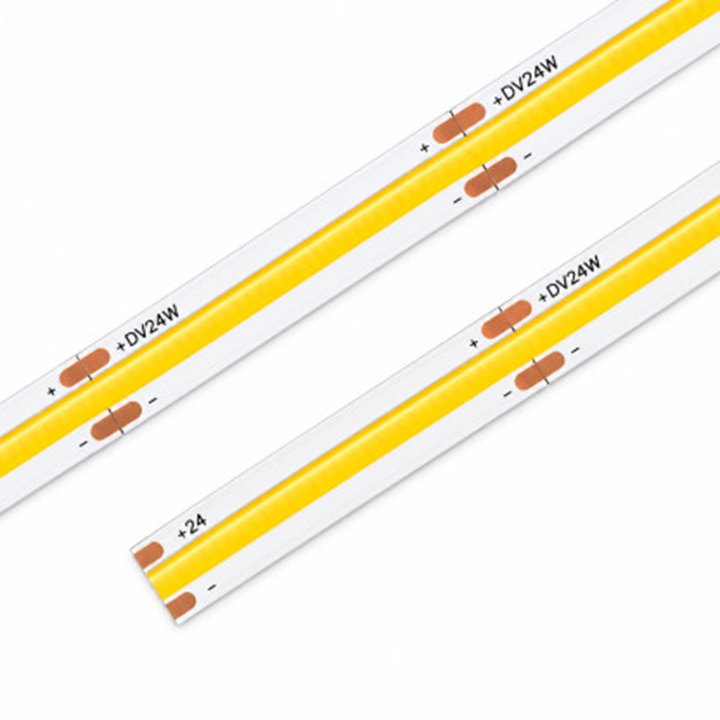

Vexar C320
Vexar C320
Order code C320 · COB 320 LEDs/m
VXC320-10-30-20

Select the listed CCT, tunable-white range or colour-control version. Fixed colour-control models use their model-specific SKU pattern. Choose the listed IP construction; confirm connector and end-cap compatibility for the complete installation. Confirm total length, PCB width, cutting interval and power-feed locations. Specify the remote constant-voltage driver and the compatible dimming or colour controller. Check the model input voltage and maximum run.

Colour temperature3000K
IP ratingIP20
Wattage10 W/m
Lumen output1040 lm/m
CRI90
Input voltage24 V DC
Beam180°
ControlNon-dimmable / PWM; 0-10V, DALI or Phase via compatible driver / controller
ProtectionIP20 (IP54/IP65/IP67 on request)
LEDs320 per metre
PCB width8 mm
Cut interval50 mm
Standard reel5 m
Maximum run5 m
Lead150 mm
TypeCOB LED strip 320 LEDs/m
Send this spec →
SL-08 — Strip Lights

More strip lights

All product families →

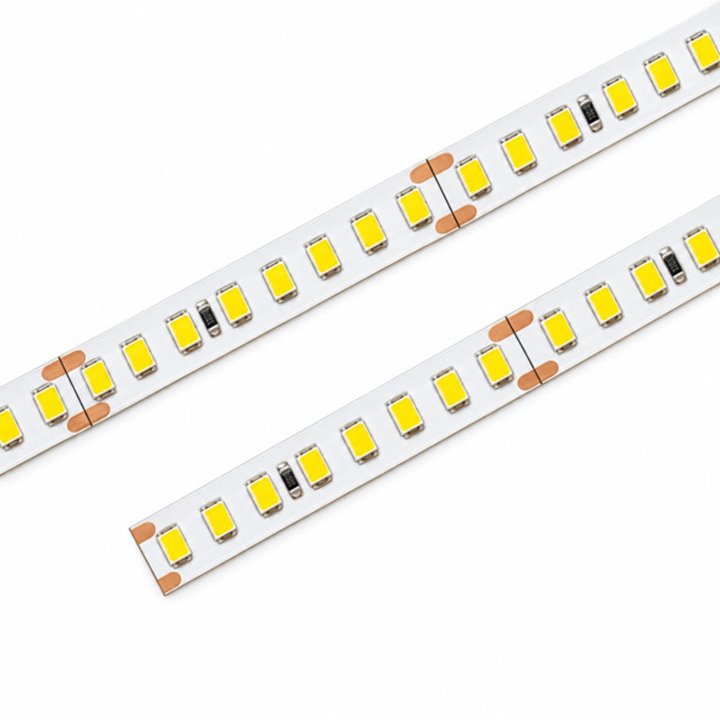

Lumen series
